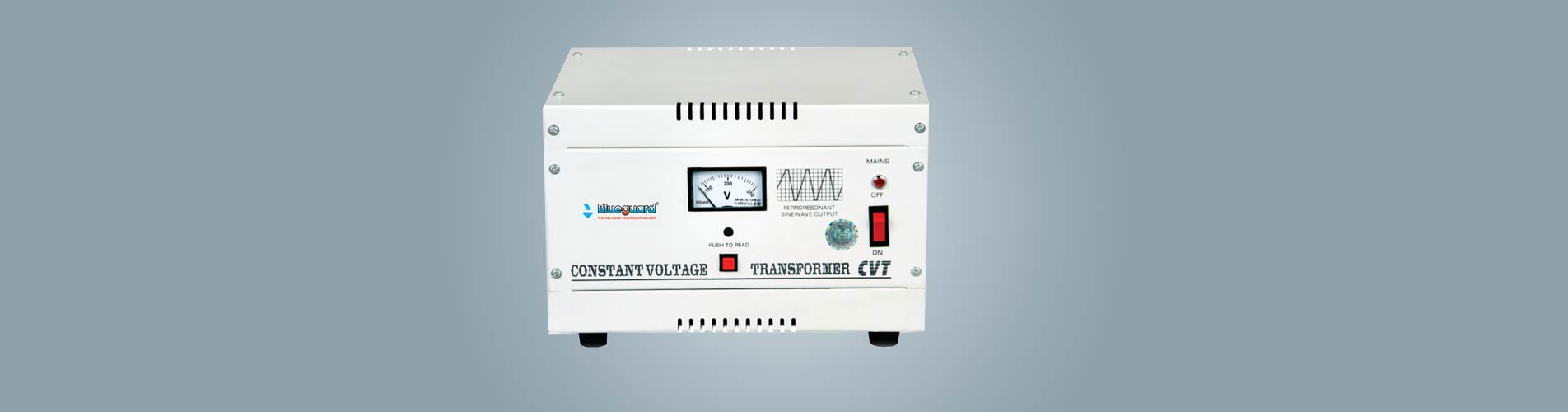

Constant Voltage Stabilizer

Blueguard is a leading manufacturer of high quality voltage stabilizer. Our aim is to incorporate the latest technology & to provide stable & high quality product.

Specification

• Input Voltage : 180-260, at rated load
• Output Voltage : 220/230V-/-1 %
• Frequency : 50Hz*/-1%
• Response Time : 30 milliseconds
• Efficiency : 90% (app) under full load condition
• Output wave form : Sinusoidal
• Wave from distortion : less then 4% under full load condition.
• Load Power Factor : 0.75% lag to 0.9% lead
• Ambient Temp. : -5^o to 50^o c
• Effect of line : 1% (app) change in
• frequency : output voltage for every 1% change in line frequency

Recommendations

• Place the CVT away from equipment and all magnetic display and storage devices like diskettes, monitors, tapes etc.
• It is safer to connect CVT to mains supply through a 3 Pin socket ensuring there by the availability of proper ‘Earth’ connection.
• Switch ON the CVT first then the attached peripherals and while switching OFF, switch OFF attached peripherals first and then the CVT.
• In case of supply from a generator, check frequency, CVT is not be used if frequency variation is beyond 50 +/-1Hz.
• Switch OFF the CVT when not in use.
• Not to be used for high inductive LOADS like motors.
