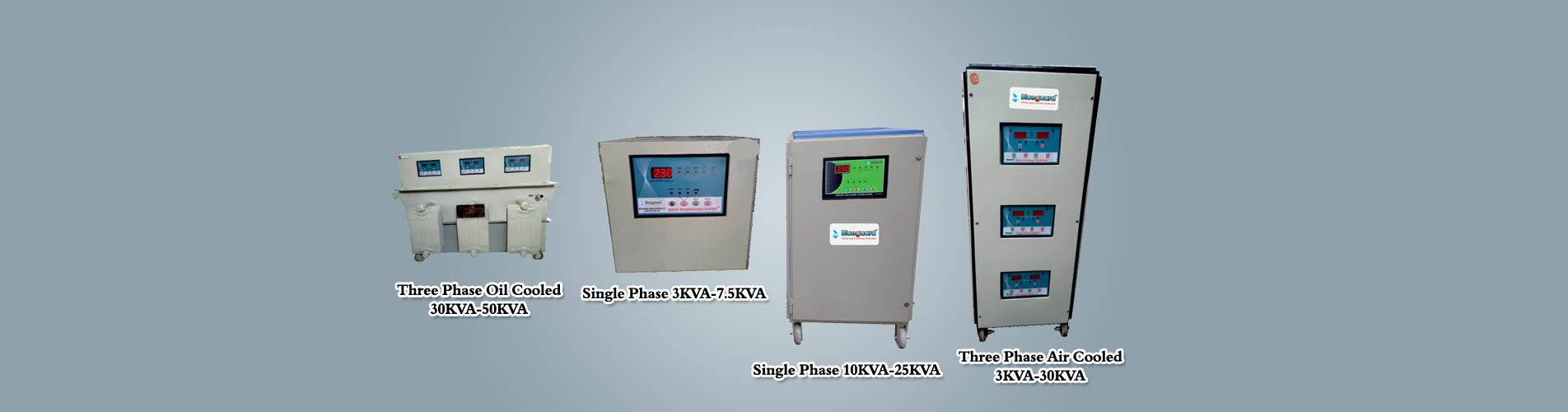

Servo Voltage Stabilizer

Blueguard is a leading manufacturer of high quality voltage stabilizer. Our aim is to incorporate the latest technology & to provide stable & high quality product.

Specification

• Capacity : 1 KVA to 100 KVA (Single Phase)
• Input Voltage : 160 V - 260 V, 140 V, - 280 V (Single Phase), 300 V - 450 V, 260 V - 450 V (Three Phase), (other ranges available on specific order)
• Output Voltage : 220 V / 230 V / 240 V Single Phase (adjustable), 380 V / 400 V / 415 V Three Phase (adjustable)
• Regulation : +/-1% or better.
• Supply Frequency : 47 Hz - 53 Hz.
• Efficiency : better Than 97%
• Effect of Load power Factor : Nil
• Wave from Distortion : Nil
• Rate of Correction : Better than 36 V / sec. in air cooled models, Better than 20 V / sec. in oil cooled models
• Duty Cycle : 100% continuous
• Response Time : Less than 100 ms.
• Cooling : Air / Oil as per requirement
• Over Load Capability : Upto 200% momentarily
• No Load Losses : Less then 0.8% over entire range
• Suitability : Suitable for 3Ph. Unbalanced / balanced supply & unbalanced / balanced load.
• Mounting : On Wheels
• Earthing : Earthing Terminals Provided.
